Filters > Low Pass Filter 0 to 490MHz

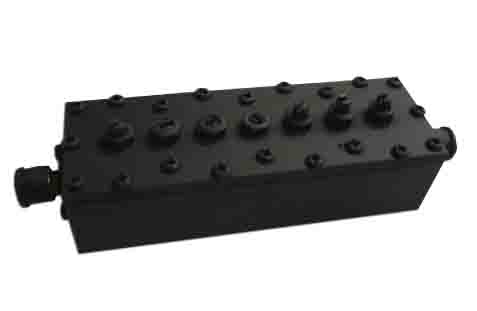

 Low Pass Filters
 Frequency Range 0 to 490MHzGHz.
 Military, Space and Commercial Applications.
 Good temperature behavior,High aseismatic capability.
 Custom Design Available Upon Request.


Part Number DPVLBP10673A
Freq.Range 0-490MHz
Insertion Loss 0.5dB Max
Outside Band Rejection 45dB at 850MHz and above
VSWR

1.3:1 Max.

Average Power

100W Min.

Size LxWxH 180×26×20(mm)
Connector Type N/SMA
OperatingTemperature -20~+65°C
